CP2102 Module Serial Converter

Product description:
INQUIRY

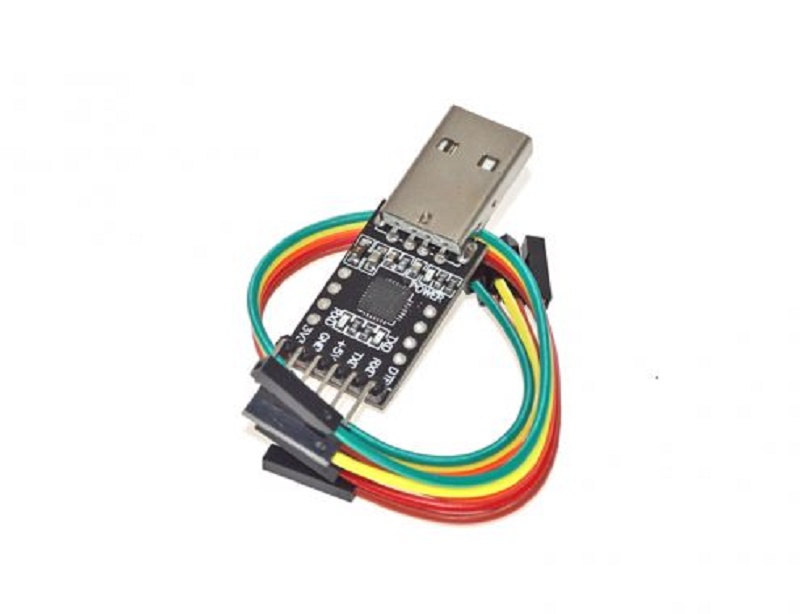

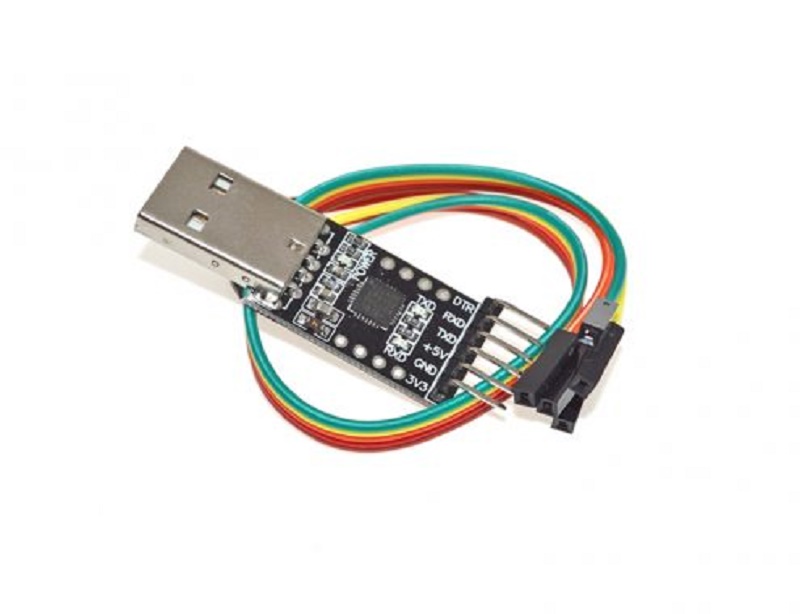

USB To UART TTL Module Serial Converter 6 Pin CP2102 STC
Product Description
·USB to TTL Serial Converter
·USB to TTL Adapter.
·Use this device to connect your PC to a serial (TTL level) device.
·Uses CP2102 chipset and has a standard 0.1″ pitch terminal strip to connect directly to ·····UART or I/O pins for easy access to your MCU
·USB specification 2.0 compliant with full-speed 12Mbps.
·Standard USB type A male and TTL 6pin connector.

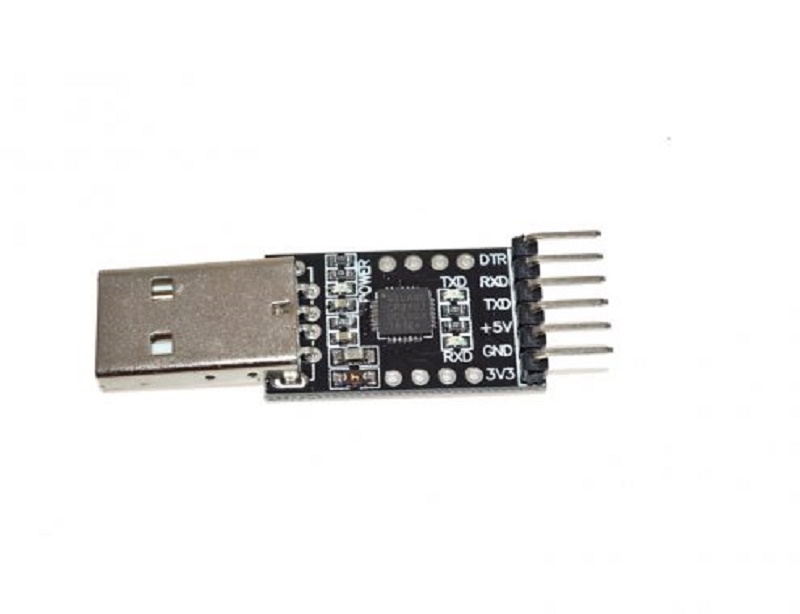

·6 pins for 3.3V, RST, TXD, RXD, GND & 5V.
·All handshaking and modem interface signals.
·Baud rates: 300 bps to 1.5 Mbps.
·Byte receive buffer; 640 byte transmit buffer.
·Hardware or X-On/X-Off handshaking supported.
·Event character support Line break transmission.
·USB suspend states supported via SUSPEND pins.
·Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
·Size: 42mm X 15mm (approx) .
·Weight: 4g (approx).

·The USB side must be connected to PC or Mac. Other USB devices like a digital camera,

·scanner and printer is not allowed.
