USB-TTL CP2102 Module Serial Converter

Product description:
INQUIRY

6Pin USB 2.0 to TTL UART Module Serial Converter CP2102 STC Replace FT232
Product Description

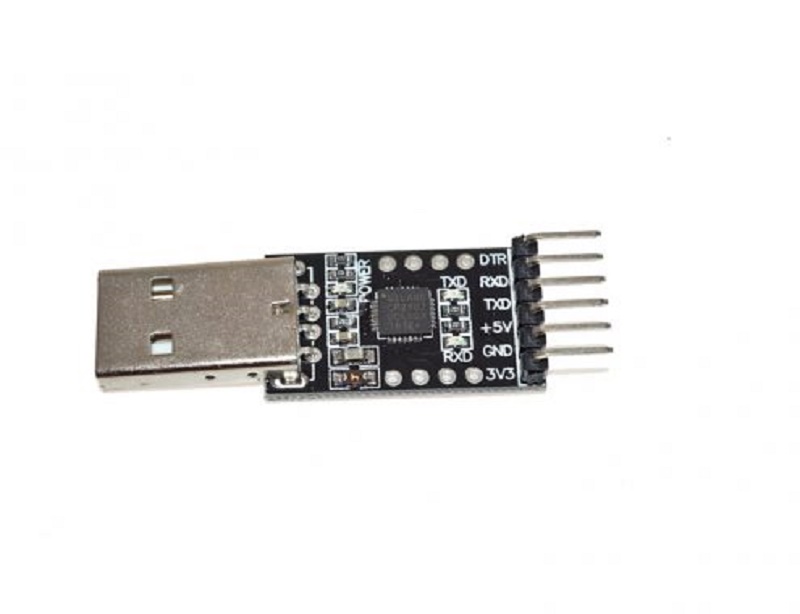

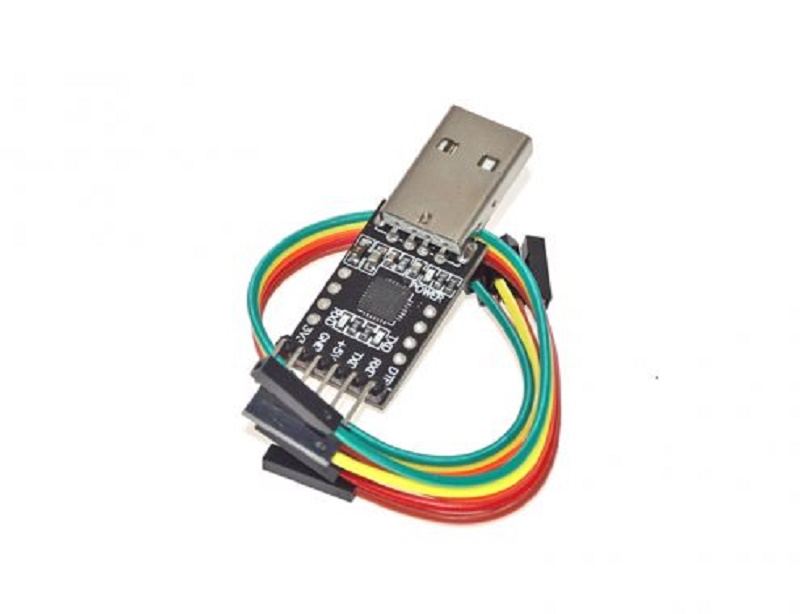

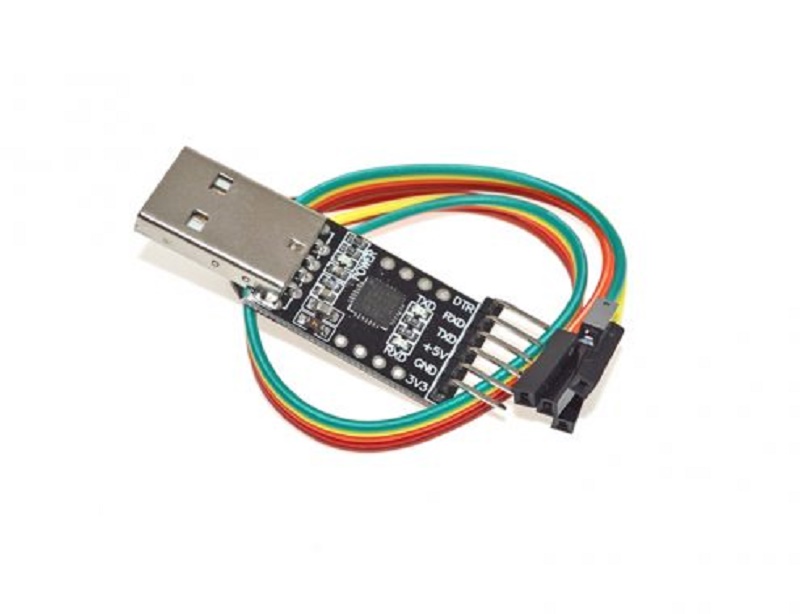

This is a USB 2.0 to TTL UART 6PIN CP2102 Module Serial Converter. Connect MCU easily to your computer!
Stable and reliable chipset CP2102
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
All handshaking and modem interface signals.
Baud rates: 300 bps to 1.5 Mbps.
Byte receive buffer; 640 byte transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Temperature Range: -40 to +85.
Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
