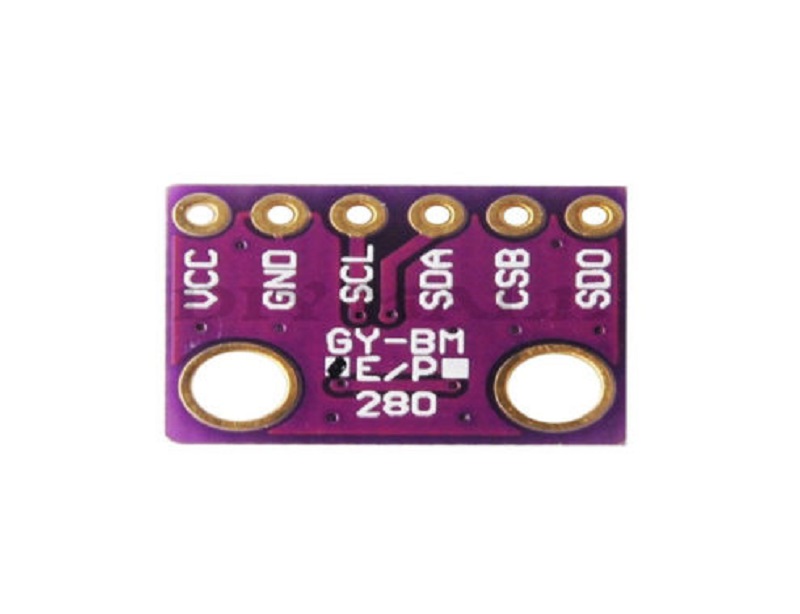

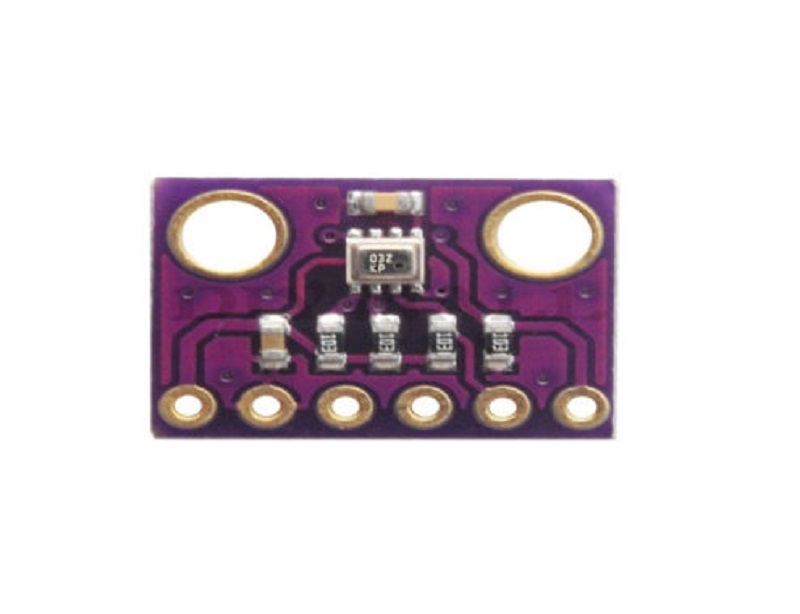

GY-BME280-3.3 High Precision Atmospheric Pressure Sensor Module

Product description:
INQUIRY

GY-BME280-3.3 High Precision Atmospheric Pressure Sensor Module
Product Description
100% Brand New & High Quality

BME280 Features

– Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA

– Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)

– Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V VIDEO interface voltage range: 1.2 V to 3.6 V

– Current consumption 1.8 uA @ 1 Hz humidity and temperature 2.8 uA @ 1 Hz pressure and temperature 3.6 uA @ 1 Hz humidity, pressure and temperature 0.1 uA in sleep mode

– Operating range -40 … + 85 C, 0 … 100% rel humidity, 300 … 1100 hPa- Humidity sensor and pressure sensor can be independently enabled / disabled.
