Acceleration module

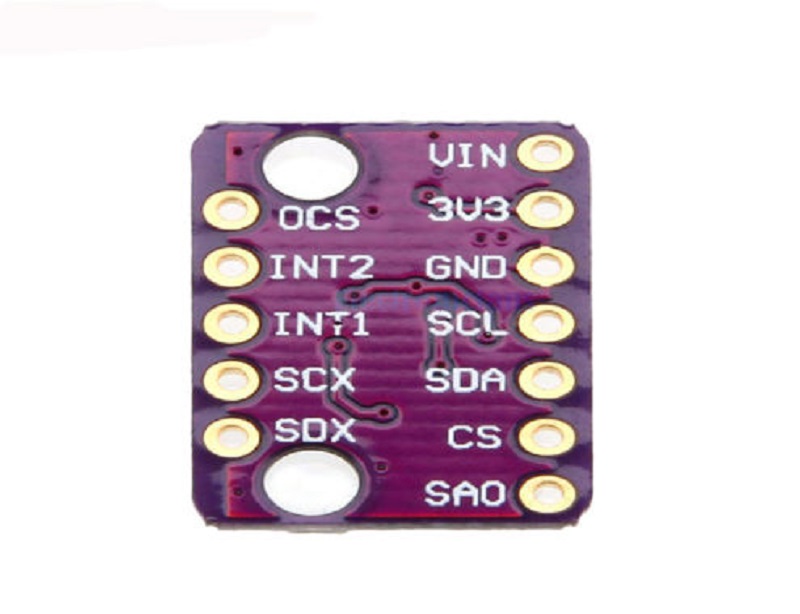

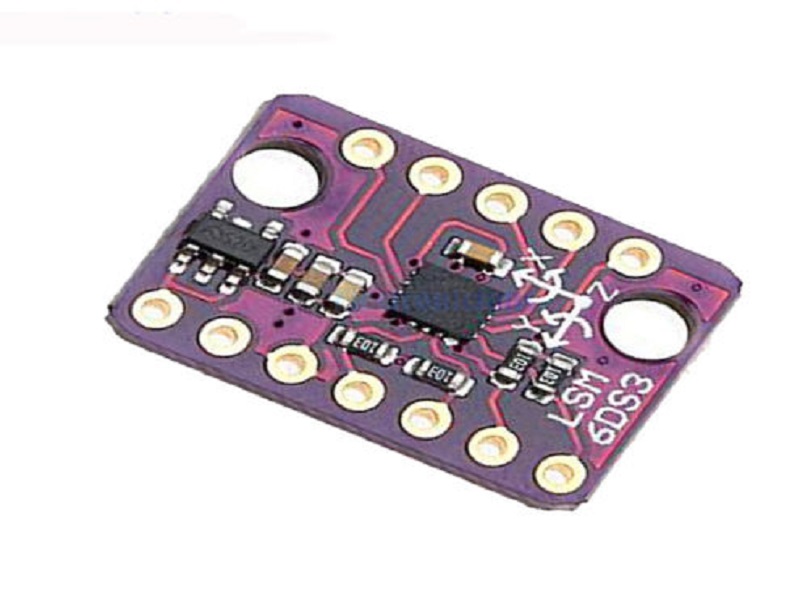

GY-LSM6DS3 module 6 Degrees of Freedom Breakout IIC / SPI transmission

Product description:
INQUIRY

GY-LSM6DS3 module 6 Degrees of Freedom Breakout IIC / SPI transmission
Product Description
100% Brand New & High Quality

Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz.
“Always on” experience with low power consumption for both accelerometer and gyroscope

Smart FIFO up to 8 kbyte based on features set

± 2 / ± 4 / ± 8 / ± 16 g full scale

± 125 / ± 245 / ± 500 / ± 1000 / ± 2000 dps full scale

Analog supply voltage: 1.71 V to 5 V

SPI / I2C serial interface with main processor data synchronization feature

Embedded temperature sensor

Module size 13mm * 18mm
