Card Reader module
Card Module Slot Socket Reader SD Card Module Smart Homes Technology
Micro SD Storage Board Mciro SD TF Card Memory Shield Module Smart Homes Technology
Product Description
SD Card Module is smart homes technology,for science kits for kids,science projects,robot car on high school,primary school,secondary school.
1 .Support Micro SD card, Micro SDHC Card (High Speed Card).
2. Board Level Conversion Circuit, Namely the Interface Level For 5V or 3.3V.
3. Power Supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit Board.
4. The communication interface is a standard SPI interface.
5. 4 M2 Screw Positioning Holes For Easy Installation.

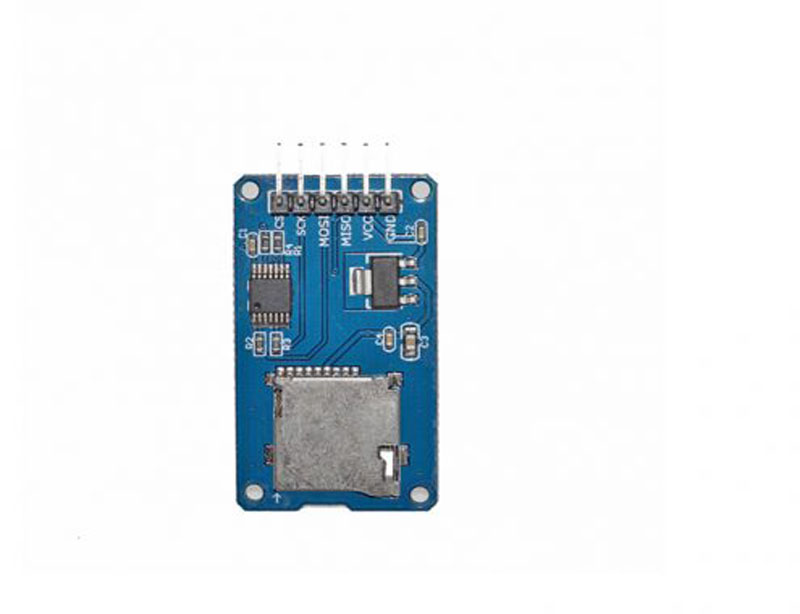

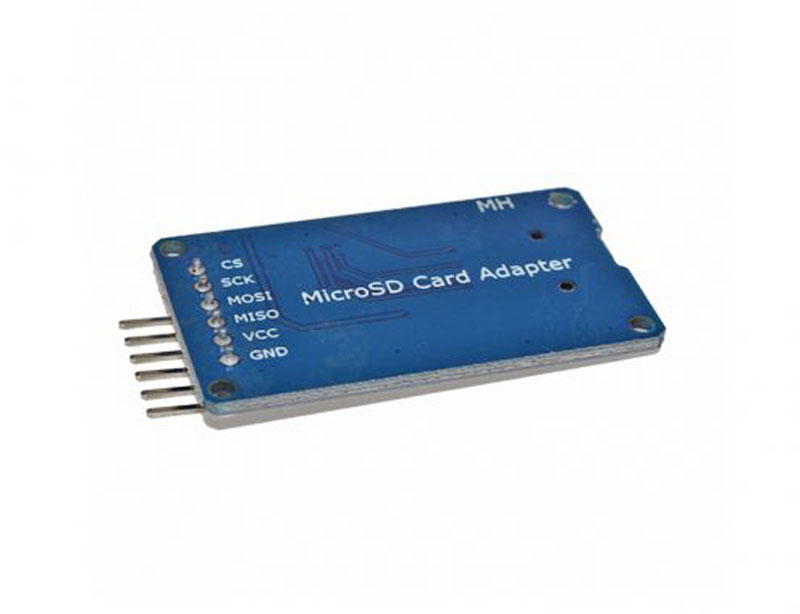

6. Control Interface: A Total of Six Pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the Power Supply, MISO, MOSI, SCK For SPI bus, CS is the chip select signal pin.
7. 3.3V Regulator Circuit: LDO Regulator Output 3.3V For Level Conversion Chip, 8. Micro SD Card Supply.
8. Level Conversion Circuit: Micro SD Card to Signal the Direction of Converts 3.3V.
9. MicroSD Card interface to control the direction of the MISO signal is also converted to 3.3V, general AVR microcontroller systems can read the signal .
10. Micro SD Card Connector: Self Bomb Deck, Easy Card Insertion.
