GY-91 MPU 9250 BMP280 10DOF gyro compass 9-axis acceleration sensor module

Product description:
INQUIRY

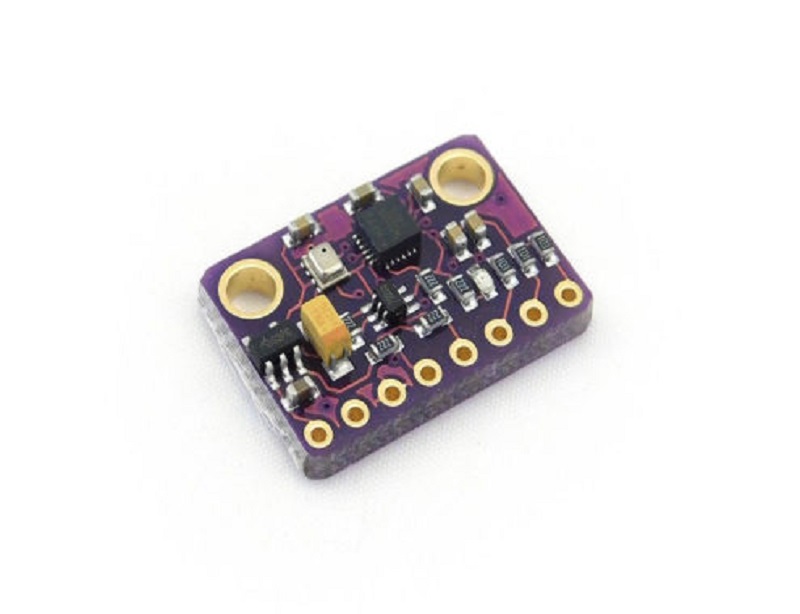

GY-91 MPU 9250 BMP280 10DOF gyro compass 9-axis acceleration sensor module
Product Description
MPU-9250 + BMP280 module

(Three-axis gyroscope + triaxial accelerometer + triaxial magnetic field + pressure)

Module Model: GY-91

Use chip: MPU-9250 + BMP280

Power supply: 3-5v (internal low dropout regulator)

Communication: standard IIC / SPI communications protocol

-Chip 16bit AD converter, 16-bit data output

Gyroscopes range: ± 250 500 1000 2000 ° / s

Acceleration range: ± 2 ± 4 ± 8 ± 16g

Field range: ± 4800uT

Pressure range: 300-1100hPa

Using Immersion Gold PCB, machine welding process to ensure quality

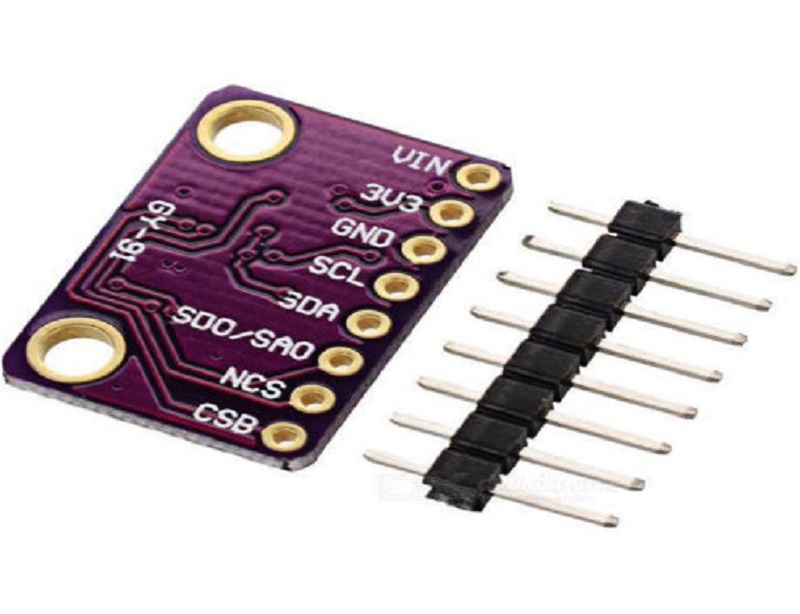

2.54mm pitch

Module size 14.3mm * 20.5mm
