Magnetometer Accelerometer GY-511 Easy Science Experiments

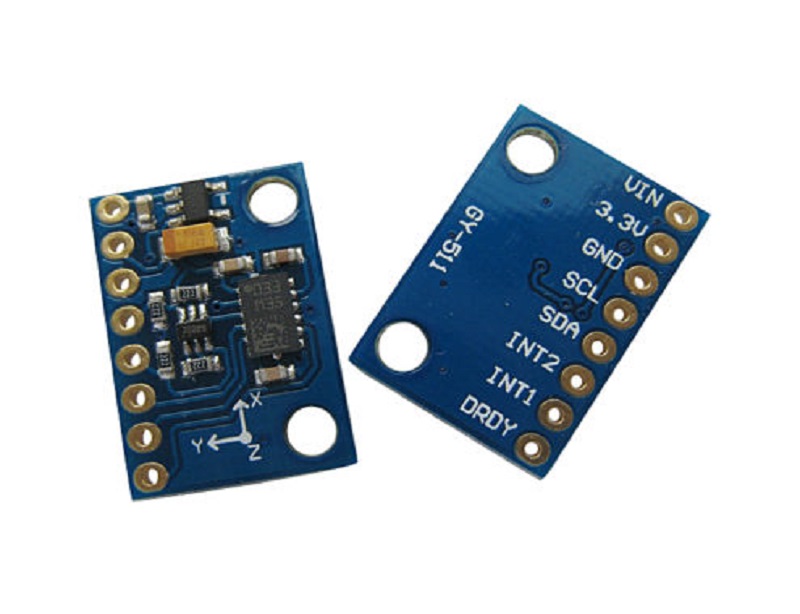

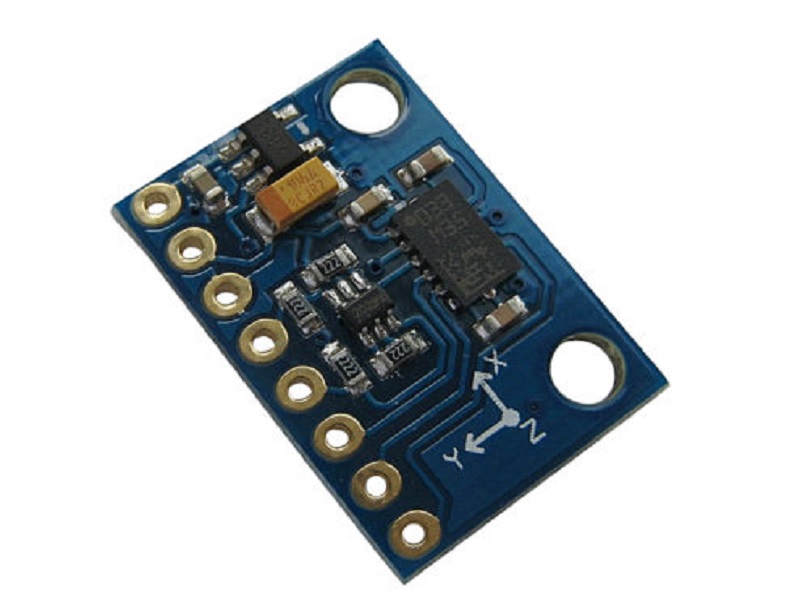

GY-511 Module 3 Axis E-Compass Accelerometer Magnetometer Sensor Easy Science Experiments
Product Description
Accelerometer Magnetometer Sensor is for simple science experiments,science experiments for kids,robot car on high school,primary school,secondary school.
The LSM303DLHC is a digital 3 axis accelerometer and 3 axis magnetometer with I2C interface. It has full-scale acceleration range of ±2g to ±16g and full scale magnetic field range of ±1.3 to ±8.1 gauss. All the full scale ranges are user selectable.
Voltage: 3-5V.
I2C serial interface
16 bit data output
3 magnetic field axis and 3 acceleration axis
Full scale range of ± 1.3 to ±8.1 magnetic field
±2g/±4g/±8g /±16g user selectable full-scale acceleration ranges
Other Features:
· Embedded temperature sensor
· 6D/4D-orientation detection
· Embedded FIFO
· 2 independent programmable interrupt generators for free-fall and motion detection
· Power-down mode / low-power mode
