GY-906 MLX90614ESF non-contact infrared temperature sensor module

Product description:
INQUIRY

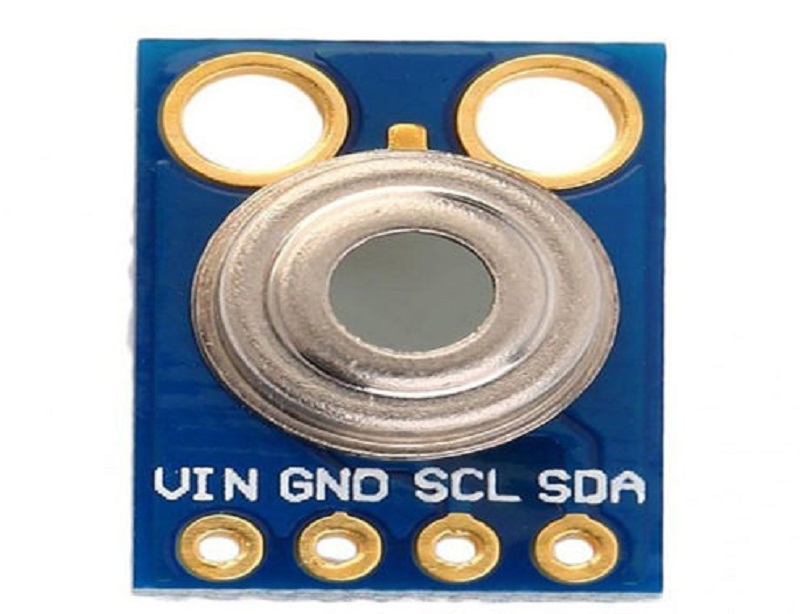

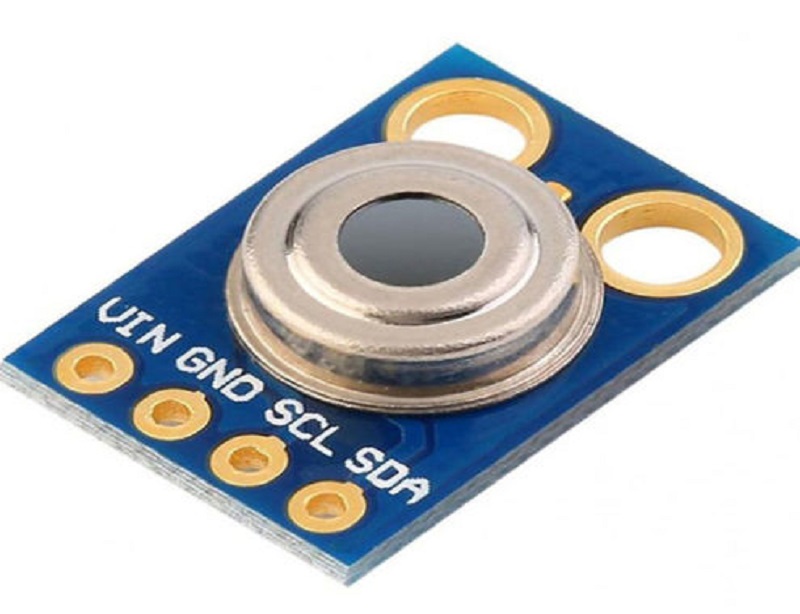

GY-906 MLX90614ESF non-contact infrared temperature sensor module
Product Description
Small size, low cost

Mounted on a breakout board with two types of pins

10k Pull up resistors for the I2C interface with optional solder jumpers

Easy to integrate

Factory calibrated in wide temperature range:

-40…+125°C for sensor temperature and

-70…+380°C for object temperature.

High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration

Measurement resolution of 0.02°C

Single and dual zone versions

SMBus compatible digital interface

Customizable PWM output for continuousreading

Simple adaptation for 8…16V applications

Sleep mode for reduced power consumption

Different package options for applications andmeasurements versatility

Automotive grade
