Display module

LCD Display Module Yellow Green LCM Module

Product description:
INQUIRY

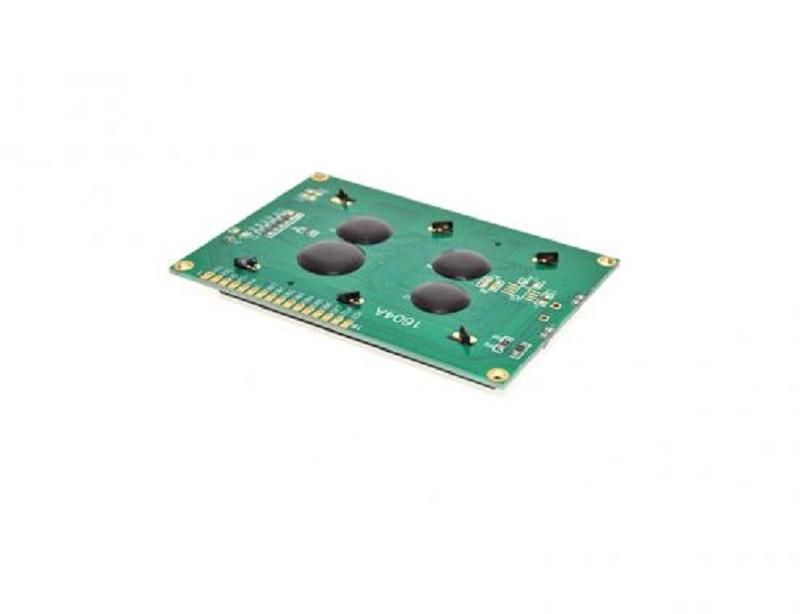

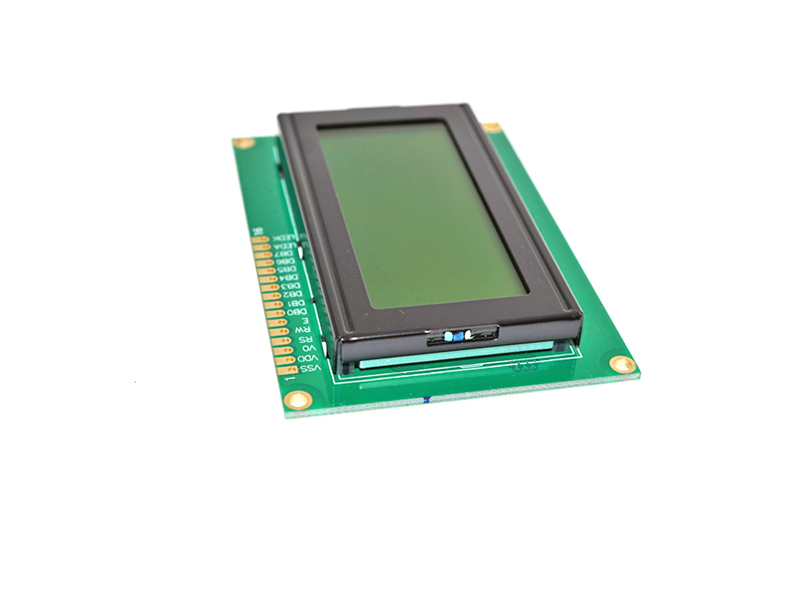

LCD 16×4 1604 Character LCD Display Module Yellow Green LCM Module
Product Description
·IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
·Interface 6800 4-bit Parallel , 6800 8-bit Parallel
·Display Type STN-LCD Yellow
·Response Time(Typ) No
·Contrast Ratio(Typ) No
·Colors No
·Viewing Direction 6:00
·Viewing Angle Range No
·Appearance White on Yellow
·Brightness(Typ) No
·Backlight Color Yellow Color
·Backlight Current (Typ) 45mA
·Power Supply(Typ) 5.0V
·Supply Current for LCM(Max) 1800uA
·Operating Temp -20℃~70℃
·Storage Temperature -30℃~80℃
